- Size: 4970*1820*2744
- Place of Origin: China
- Brand Name: CAISEREX
- Model Number: CS917pro
- Weight: 3800.000 kg
- :
- :
- :
- :

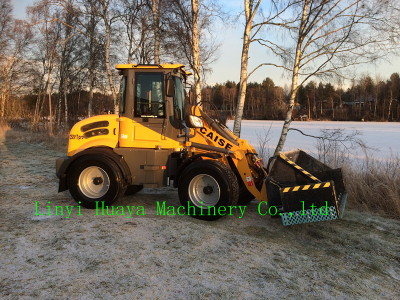

CS917pro wheel loader is an efficient, elegant, secure and reliable mini engineering machine. It is designed on the basic of CS915.
1. Hydraulic Torque Converter: There is little impact when engaging or shifting gears. .
2. Luxurious Cab
● The seat could move forward, backward, upward and downward to adjust the space to increase driving comfort.
● The regulating knob on the left of the seat could adjust the seat elasticity according to driver’s weight, therefore meeting ergonomic requirements.
● Seat belt, fire extinguisher, E4 approved glass and FOPS&ROPS cab guarantee more safety when emergency happens.
3. Optional equipments: air conditioner, rearview camera, stereo equipment and so on.
Main Performance and Parts Specifications· Standard Equipment
I tem | S pecification | I tem | S pecification |
K erb weight | 3 800 kg | M ax. speed | 3 0km/h |
R ated bucket capacity | 0. 65 m³ | DRIVE AXLE | |
R ated load | 1500kg | M ain transmission type | S piral gear, first stage deceleration |
M ax. tractive force | 25kN | TYRE | |
M ax. breakout force | 25kN | T ype specification | 295/65R22.5 |
M ax. gradeability | 30% | O ptional | 14-17.5 ; 385/65R 22.5 FW806M+S |
M ax. dumping height | 2645mm | STEERING SYSTEM | |
D umping distance | 976mm | T ype | Double cylinder hydraulic steering system |
O verall dimension(L*W*H) | 4 970*1820*2744 mm | S teering angle | 32° |
ENGINE | M in. turning radius | 4283mm | |
M odel | A498BT1 | HYDRAULIC SYSTEM | |
T ype | I nline, direct injection, water cooling | S ystem working pressure | 28MPa |
Rated power | 36.8kW | L ifting time | 4.5s |
Rated speed | 2 4 00r/min | T otal time | 10s |
Optional | Cummins B3.3 | BRAKE SYSTEM | |
Rated power | 45kW | S ervice brake | A ir-over-hydraulic shoe-type |
TRANSMISSION SYSTEM | P arking brake | M anual disc brake type | |
H ydraulic torque converter | hydraulic torque converter | FILL CAPACITY | |
T ype of gear box | A xis-fixed, double reduction | F uel | 51L |
G ear shift | 1 forward shift, 1 reverse shift 1 high-low speed button | H ydraulic oil | 68.6L |
